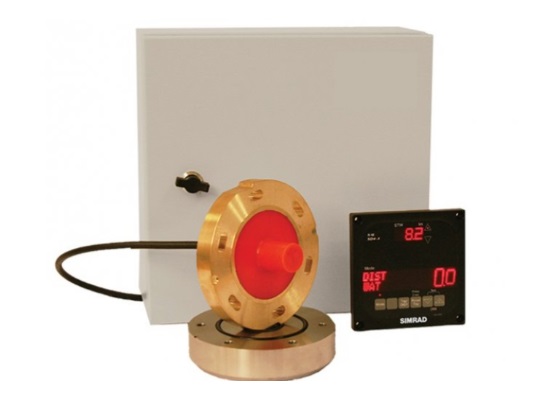

SKIPPER DL1

The SKIPPER DL1 is a Single Axis Speed Log, working on the doppler principle, providing longitudinal ship’s speed (STW) and distance relative to sea water. The SKIPPER DL1 gives accurate navigation parameters, measured as they happen, and presented in a logical, user friendly way.

SKU: dl1 Category:

Description

  • IMO Wheelmarked with MED-B
  • Doppler water speed log in single axis (STW)
  • Compact Display 144×144 mm
  • Sea Temperature readout from sensor
  • NMEA 0183 and Analog pulses output
  • 3 userfriendly programmable displays and integrated menus
  • RMRS and CCS available on request
  • Fully automatic settings

Specifications:

Speed Log:

SKIPPER DL1

Number of Axis:

1

Speed range longitudinal:

+/- 50 knots

Water track (from):

3 meter

Temperature accuracy error:

<1°C

Power Supply:

AC:115-230 V 50/60 Hz

DC: 20-32 V, auto switch over

Power Consumption:

Max 30 W

Display:

28×30 pixle alphanumeric LEDs (red) with dimming

Mounting dimensions display:

124×124 mm. Bracket or panel mounting

Front plate:

144×144 mm

Depth:

59 mm

Weight:

1 kg

Standard cable length for sensor:

40 m

Mounting options:

  • 60 mm Sea Valve for single bottom
  • 60 mm Sea Valve for double bottom
  • Steel Tank
  • Aluminium tank
  • 100 mm Sea Valve for single bottom
  • 100 mm Sea Valve for double bottom
  • PCSV60 retrofit
  • Simrad NL retrofit
  • Sagem retrofit
  • Naviknot 5005 retrofit

Speed alarms:

  • High and low speed limits
  • Power failure
  • Sensor failure

Outputs:

  • 2xNMEA 0183
  • 2xcontact closure (pulse)
  • Alarm (relay)

Inputs:

  • 1xNMEA 0183 (OPTO isolated)
  • External dimming (pulse)

NMEA Outputs:

  • Speed: VBW and VHW
  • Distance: VLW
  • Others: MTW (Temperature)

Classification:

  • IMO Wheelmarked
  • CCS on request
  • RMRS on request.
  • MED-B

Service:

Available in most major harbours, world-wide through extensive dealer network

Additional information

Weight 1 kg
