(the price includes VAT)
Material:
Hollow and bezel made of aluminum alloy. All other parts are injection molded from polycarbonate/ABS blend polymer.
Compensation:
B+C compensation is built into both versions. Holders for heel correctors are included (magnets not included). A quadrant correction (QC) kit is available as an optional accessory for the surface mount version.
Lighting:
2 x red LEDs with integrated circuitry allowing connection to the boat’s 12V or 24V DC power supply.
Weight up to: 5 kg

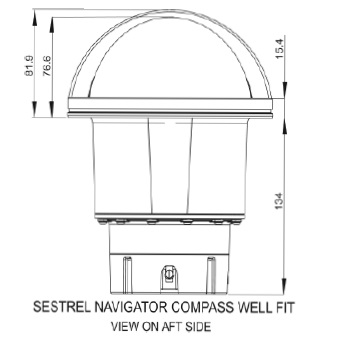

Console compass / installation
Total diameter 186 mm
Flange diameter 149 mm
Installation depth 134 mm
Appearance rosette card 135 mm
Black case
Black rosette, 5° division
B+C compensations included
Cover
Lighting 24/12VDC (2x red LEDs)
MED certification:
Color: Black and white
