The Navitron NT1100 touchscreen autopilot is a fully approved Type B MED unit and has been designed and developed by Navitron Systems Ltd for professional use on magnetic and/or gyro-based vessels of all types – including high speed craft (HSC). Utilising the latest surface mount electronics, the NT1100 is a user-friendly, customizable autopilot that incorporates Navitron’s rigorous standards for build quality, product performance and reliability.
Utilizing the latest surface mount electronics, the NT1100 is a user-friendly, Adaptive Autopilot that incorporates Navitron’s rigorous standards for build quality, product performance and reliability.
The NT1100 is suitable for both new build and retrofit applications across a wide range of applications including oceangoing tugs, passenger and cargo ships, tankers to high speed craft and offers Navitron’s traditional reliability enhanced by Adaptive Control Technology. Adaptive Mode automatically monitors and adjusts autopilot parameters to provide optimal steering performance, whether operating in slow speed towing mode or on a high speed passenger vessel travelling at 60 knots.
The basic package includes the NT1100 Control Unit (suitable for panel mounting), Navitron Rudder Reference Unit and Central Distribution Unit. The System is directly compatible with a wide range of vessel steering system configurations, including single and dual solenoid systems and voltage (±10Vdc) or current (4-20mA) steering amplifiers.
Key Features
DNV Type Approved MED for HSC & Conventional Vessels

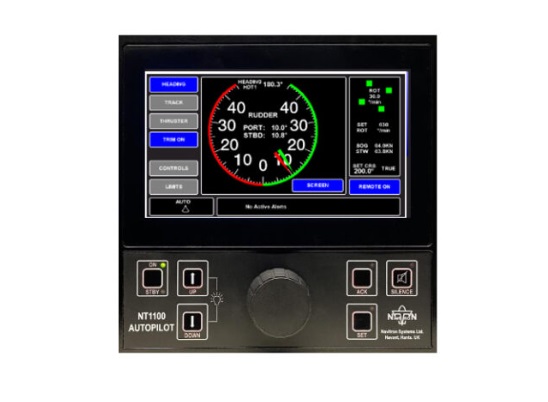

7 inch colour touch screen displaying set course, ROT, true heading, speed data, rudder angle, messages and BAMS alert icons.
Tape repeater display displaying set course error line, true heading and course.
Permanent heading changes in 1, 5 & 10 degree steps etc. via touch screen surfaces.
Operator selectable display mode and lighting control (light characters on dark background or vice versa).

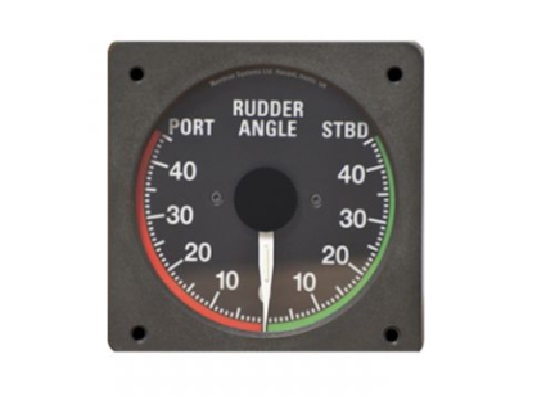

Optional equipment: Power steering controls, analog/digital directional repeaters and rudder indicators.
