Description

KEY FEATURES
The iSeaSense Digital Yacht is a new range of complete marine instrument packages based on NMEA 2000 and wireless connectivity – allowing for maximum flexibility and connectivity. Choose from phones, iPads and tablets for on-board data displays, as well as third-party instruments that meet industry standards and multi-function displays.

Premium quality and high-precision sensors are used for the vessel’s depth, speed, compass and GPS data. The data can also be shared with other devices on the NMEA 2000 network.

iSeaSense is easy to set up. Available as two main starter packages, everything is included for easy installation and ordering. No application is required as the iSeaSense wireless server generates powerful graphical and numerical display pages that can be viewed via a browser on any device.

The iSeaSense Pack 1 is a complete depth, speed and temperature package for your boat. It also includes a spatial sensor for pitch and roll detection and an advanced algorithm for calibrating boat speed information based on pitch.

A full NMEA 2000 backbone wiring package and wireless interface for connectivity are included. There is a spare cable and connection point for additional NMEA 2000 devices, such as a multifunction display or Digital Yacht instrument suite.

OPERATION
You can access the iSeaSense dashboard via its own web interface. Simply open your web browser, enter the iSeaSense IP address or iSeaSense.local and you will have access to the attractive dashboard to display all your instrument data. So, no complicated software or programming application is required.

By default, iSeaSense comes with a number of pre-defined pages that display digital data frames and analog “instruments” of the instrument and navigation data available on the NMEA 2000 network.

With iSeaSense you are in control of the data you see. The pages are fully editable, so any data frame can be configured for the information you want and you can easily add and remove data frames to create your perfect display. The configuration can also be saved and shared – ideal for standard configurations for production boats and original equipment manufacturers (OEMs).

SPECIFICATIONS
iSeaSense Package Features

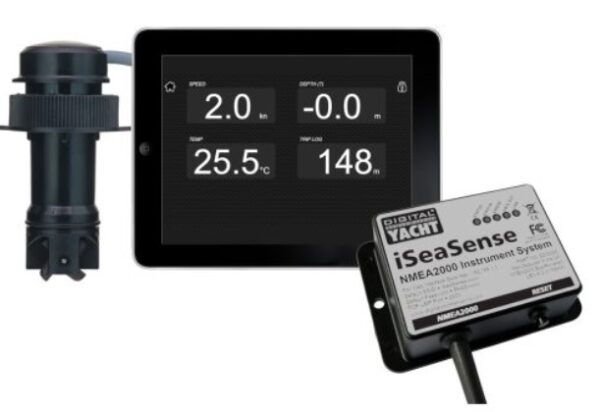

Package includes iSeaSense wireless server, NMEA 2000 cabling, and advanced depth, speed, and temperature transducer with pitch and roll sensor
iSeaSense server creates beautiful graphical data pages with fast 5Hz updates, viewable on any smartphone, tablet, or iPad
Advanced calibration routing available for transducer with corrections for boat pitch and transducer position
Includes additional NMEA 2000 T piece for system expansion, allowing easy addition of sensors or displays

Interface Features
NMEA 2000 interface and wireless gateway for iSeaSense system. Built-in instrument display page server.
Configurable display pages for depth, speed, temperature, time, GPS, wind, navigation and compass
Network diagnostics, settings and calibration capabilities
Data logging
Self-powered by NMEA 2000 backbone
Compatible with any modern web browser
Built-in wifi antenna typically covers boats up to 20 meters
Supports additional TCP/IP and UDP data connections for third-party applications on up to 7 connected devices (extracts GPS, AIS, depth, wind and speed information from NMEA 2000 bus)

Sensor Features
Sensor for depth, boat speed, water temperature and boat tilt/roll with fast, highly accurate 5Hz speed updates from 0.3 to 45 knots
Data update rate: Depth: 1X/second, Speed: 5X/second, Tilt/Trim: 10X/second
235KHz depth mode to minimize interference with 50/200KHz fishfinders and depth sounders
Maximum depth 100 meters
Supports hull tilt up to 22 degrees
Supplied with 6 meter NMEA 2000 cable and self-powered by iSeaSense NMEA 2000 network
Standard hull size/diameter 2”
Includes Bluetooth interface for advanced calibration features and adjustment, if required
Stainless steel and bronze fittings available as an option
