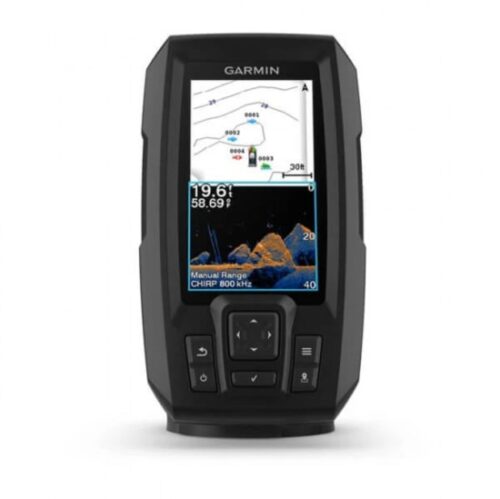

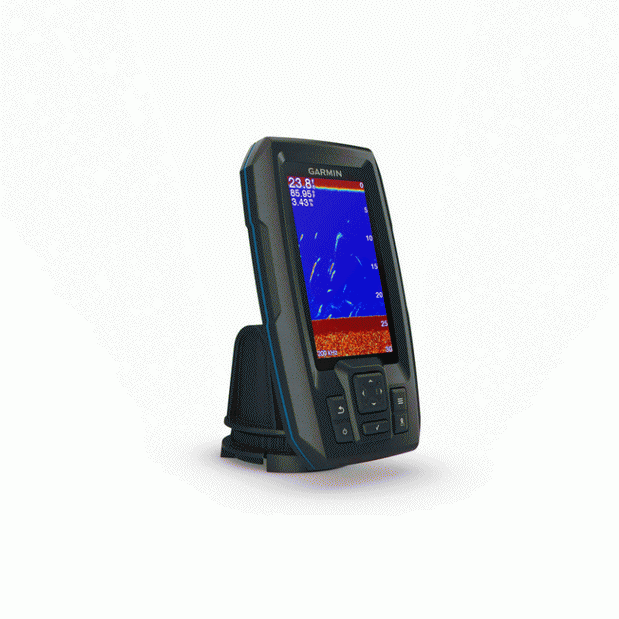

STRIKER ™ Plus 4 with 77 / 200kHz dual beam sensor, Garmin

The STRIKER Plus 4 with the bright 4.3 ”screen and the built-in GPS, has CHIRP sonar for crystal display and Quickdraw Contours mapping software that stores content up to 800,000 acres with equal to 30 cm.

IN ADDITION TO
  • A SENSOR PORT WITH 4 PINS
  • EQUAL CURVES
  • Built-in GPS
  • POINT MARKING
  • COURSE OVER GROUND (COG)
  • POWER CONSUMPTION @ 12V: 0.23A
SKU: SP477200 Category:

Description

4’s sonar with top-notch sonar and QuickDraw Contours mapping software

  • Includes dual-beam sensor with traditional Garmin CHIRP sonar, for crystal clear display and unique target separation
  • Built-in Garmin QuickDraw ™ Contours mapping software that lets you create and save 30cm maps for up to 800,000 acres
  • Built-in GPS lets you save points, create routes and see boat speed
  • Bright, sunlit 4.3 ”screen and easy operation.
  • Durable design for any fishing environment

The STRIKER Plus 4 with the bright 4.3 ”screen and the built-in GPS, has CHIRP sonar for crystal display and Quickdraw Contours mapping software that stores content up to 800,000 acres with equal to 30 cm. Built-in GPS lets you store and navigate points while showing you boat speed.

Garmin Quickdraw Contours

No one knows the waters you fish better than you and your friends. While trolling, the Quickdraw Contours mapping software creates high-resolution maps of the areas you visited. No special knowledge is required. STRIKER Plus 4 can store up to 800,000 acres of maps equal to 30 cm.

CHIRP sonar clarity

STRIKER Plus 4 includes Garmin CHIRP technology for a higher level of clarity and detail. The crystal display ensures impressive target separation and analysis in deep and shallow water. Equivalents are more visible even at higher speeds and signal noise can be compressed to greater depths for timely representation of those below the boat.

Sonar with GPS

The built-in high-sensitivity GPS receiver locates and maintains your position wherever you are in the water. GPS lets you pinpoint locations for different locations. So if the fish stings at one point you can save it and return to it on your next trip. Save piers, slides and other locations and you can create paths to return to these places.

GPS also allows STRIKER Plus 4 to display speed on your screen, to make sure you have the right treadmill speed to catch the fish you want.

Made for you

STRIKER Plus 4 makes fishing more enjoyable and is designed to work in any environment. The bright, sunny screen shows you a clear picture of those under the boat even on the brightest days. The larger screen gives you a better view of those below the boat. The easy-to-use menu makes it easy to navigate so you are ready for everything in the water.

GENERALLY

PHYSICAL DIMENSIONS 9.8 x 17.4 x 4.5 EC
SCREEN RESOLUTION 272 X 480 PIXELS
SCREEN TYPE QSVGA
WEIGHT 300 GR.
WATERPROOFING IPX7
TRANSMISSION POWER 200 W (RMS)



SONAR FUNCTIONS & SPECIFICATIONS

DOUBLE FREQUENCY SONAR (50/200 KHZ) YES
DOUBLE SONAR BEAM (77/200 KHZ) YES
SUPPORTED FREQUENCIES TRADITIONAL: 50/77/83/200 kHz
BOTTOM LOCK (GIVES RETURN FROM THE BOTTOM AND ABOVE) YES
WATER TEMPERATURE RECORDING AND GRAPH YES



SOUNDER OPERATIONS

DISPLAY SCREEN WITH ZOOM YES
ULTRASCROLL® (SHOWS FISH TARGETS AT HIGHER BOAT SPEEDS) YES
FISH SYMBOL ID (HELPS TO IDENTIFY FISH TARGETS) YES
AUTOGAIN TECHNOLOGY (REDUCES NOISE, MAXIMIZES TARGETS) YES
ADJUSTABLE DEPTH LINE (MEASURES THE DEPTH OF OBJECTS UNDERWATER) YES
A-SCOPE (REAL TIME APPEARANCE OF FISH PASSING THROUGH THE SENSOR) YES
INCLUDES WATER TEMPERATURE SENSOR YES



Additional information

Weight 0.3 kg
Dimensions 9.8 × 17.4 × 4.5 cm
