Detailed Features
Higher coverage than conventional sensors
Coverage angle: 16 ° to 11 °
Operating frequencies: Medium Chirp 85-135kHz
Temperature sensor: YES
Power: 1KW
Weight: 2.5kg
Hull Deadrise: 2 ° to 20 °
Xducer ID®
technology : NAI CHIR technology : YES
Hull type: Fiberglass, wood or metal
Element type 8 internal ceramic elements
Ideal for coastal or coastal fishing at medium to high depths
Bottom detection at high boat speeds
Available in Transom Mount version for outdoor installation (TM150M)
Also available Hull (B150M)
Sensor Chirp
Frequencies: 85-135 kHz. (Medium CHIRP).
CHIRP technology redefines fisheries.
AIRMAR has expanded its range of broadband sensors to meet growing demand for technology that is changing the rules of fishing.
The TM185M sensor is designed for fishing up to 600m, offering excellent target separation for most types of fishing. Transmitting at the same time in a frequency band (85-135 kHz) and not a constant frequency, these sensors detect fish in shallow, dark waters at medium depths with absolute accuracy and detail.

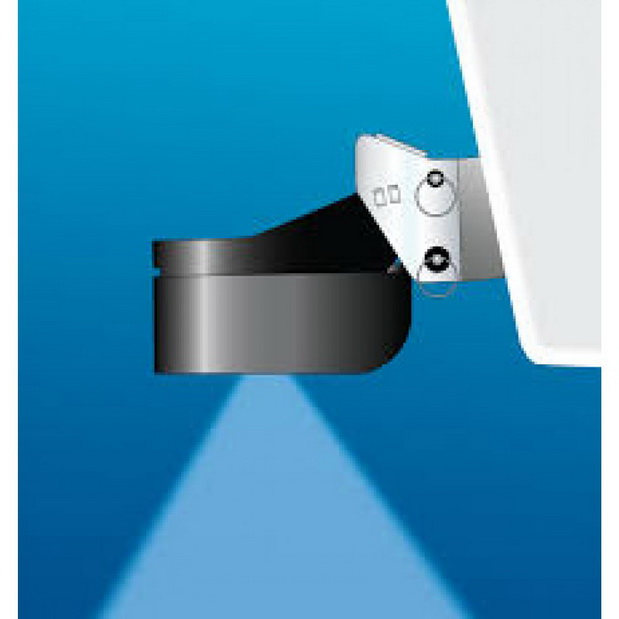

Mounted externally on the stern of the boat in the mirror (Transom Mount).
Works with HDS & Elite ti series of devices. Maximum actual depth of about 600 meters.
Ideal sensor for those fishing in shallow water.
Included: 10 m cable.
| Weight | 2.5 kg |
|---|
